Name: HPE Aruba Networking 9300‑32D 32‑port 100/200/400G QSFP‑DD 2‑port 10G Managed L3 1U - Circuply
SKU: HEWLETTPACKARDENTERPRISE_R8Z96A

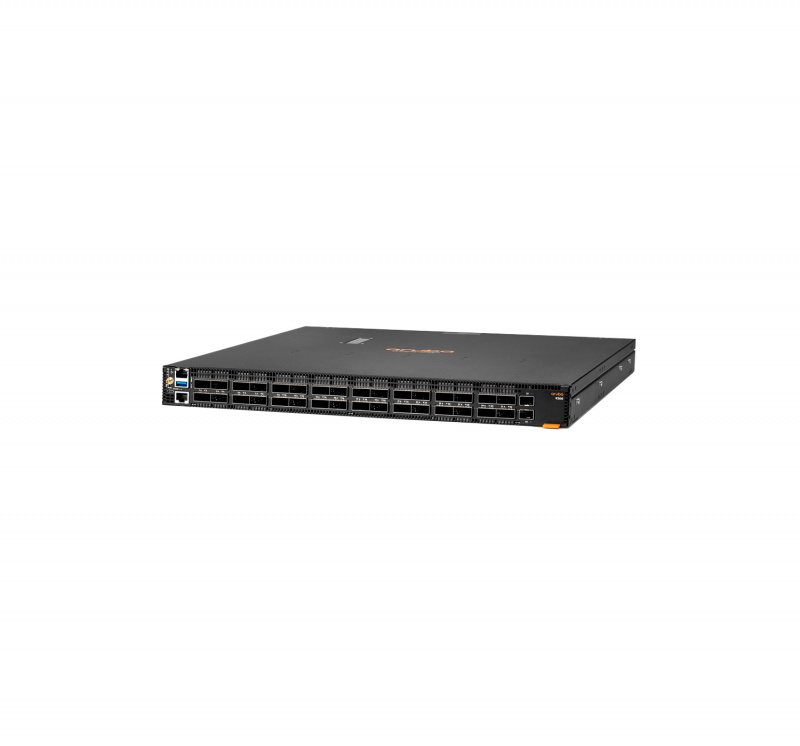

HPE Aruba Networking 9300‑32D 32‑port 100/200/400G QSFP‑DD 2‑port 10G Managed L3 1U

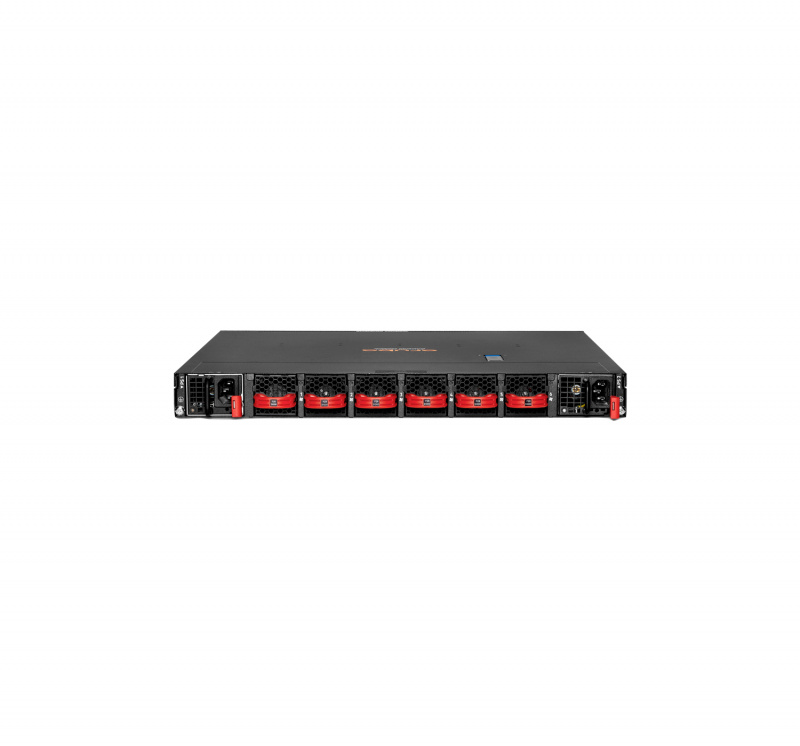

HPE Aruba Networking 9300‑32D 32‑port 100/200/400G QSFP‑DD 2‑port 10G Managed L3 1U - Image 2

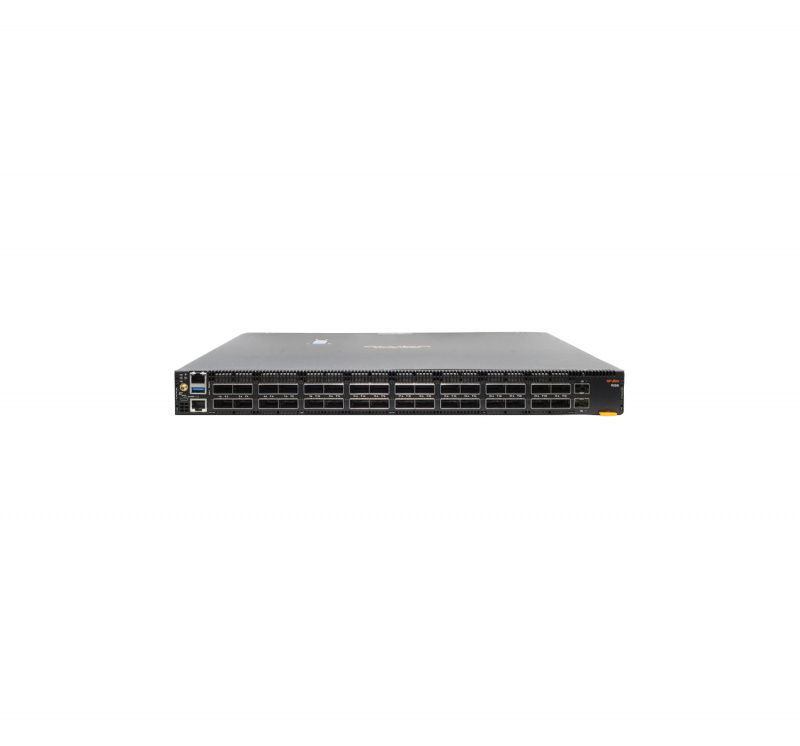

HPE Aruba Networking 9300‑32D 32‑port 100/200/400G QSFP‑DD 2‑port 10G Managed L3 1U - Image 3

Product beschrijving

The Aruba CX 9300 Switch series provides 25.6Tbps, 1U fixed configuration that supports 32 ports of 100/400GbE. This series is designed to provide flexible, cost-effective, high-density 400GbE for servers, storage, and intra-fabric connectivity.

The Aruba CX 9300 Switch series protects enterprises’ investment as they as they transition server farms from 10GbE and 25GbE to 100GbE/400GbE EVPN-VXLAN spine configurations, with reduced power and a smaller footprint. It supports large data center pods of up to 6,000 x 25G servers or up to 2,000 x 100G servers. This is an significant jump in scaling/density over current Aruba CX 8325-32C, which scales to 700 x 25G servers.

Features

High Performance and Scale
- The Aruba CX 9300 Switch series meets the modern demands of large scale virtualized and cloud networks.
- Provide flexible, cost-effective, high-density 100/400GbE for servers, storage, and intra-fabric connectivity.
- The Aruba CX 9300 Switch series with breakout cabling scalability allows a single 200GbE split into two 100GbE links.
- 100GbE ports can breakout to four 25GbE ports linking one switch port, and accommodating up to four adapter cards in servers or other subsystems.
- 400 Gbps port can be configured as 4x100GbE, 2x200GbE, or 1x400GbE.

Ethernet Storage Fabric
- The Aruba CX 9300 Switch series enables low-latency and “lossless” network QoS and connectivity characteristics that storage requires.
- Ideal for software-defined storage and HCI solutions, where multiple servers share captive (SSD/flash-based) storage resources.

Investment Protection
- The Aruba CX 9300 Switch series eases transition from 10GbE and 25GbE to 100GbE/400GbE.
- Provides higher scaling with reduced power and a smaller footprint.

Intelligent Analytics
- The Aruba CX 9300 Switch series features real-time monitoring and troubleshooting with Aruba Network Analytics Engine (NAE).
- Intelligent pre-processing of data turns raw telemetry into actionable insights.

Technische informatie

Condition	REF
Switch type	Managed
Brand	Hewlett Packard Enterprise
Networking standards	IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1t, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3ba, IEEE 802.3bs, IEEE 802.3x, IEEE 802.3z
Switching capacity	25600 Gbit/s
Rack mounting	Yes
10G support	Yes
Power over Ethernet (PoE)	No
