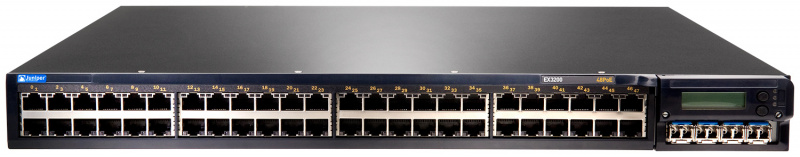

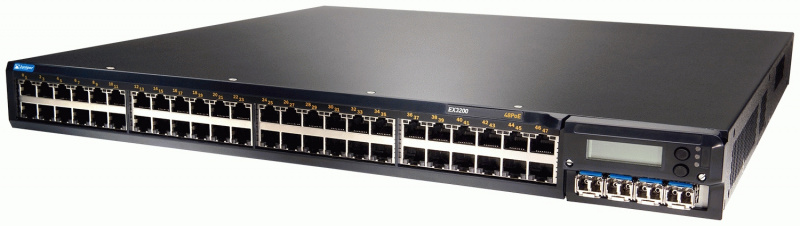

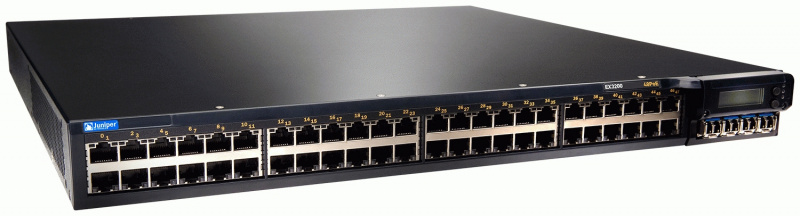

The EX3200 line of fixed-configuration switches from Juniper Networks® offer a highperformance
standalone solution for access-layer deployments in branch and remote
offices as well as campus networks.
Featuring complete Layer 2 and Layer 3 switching capabilities, the EX3200 satisfies the
wiring closet connectivity requirements of today’s high-performance businesses. Four
platform configurations are available offering 24 and 48 10/100/1000BASE-T ports with
either full or partial Power over Ethernet (PoE). The base 24- and 48-port EX3200 switches
deliver a full 15.4 watts of Class 3 PoE on the first eight ports for supporting networked
devices such as telephones, video cameras and wireless LAN (WLAN) access points in
converged networks. The EX3200 switches with full PoE deliver 15.4 watts on all 24 or 48
ports to support high-density IP telephony and other converged network environments.
The EX3200 also supports optional four-port Gigabit Ethernet (GbE) and two-port 10 GbE
uplink modules with pluggable optics to provide high-speed connectivity to aggregationlayer
switches or other upstream devices. A field-replaceable power supply and fan tray
minimize mean time to repair (MTTR) for the EX3200, ensuring maximum availability.
